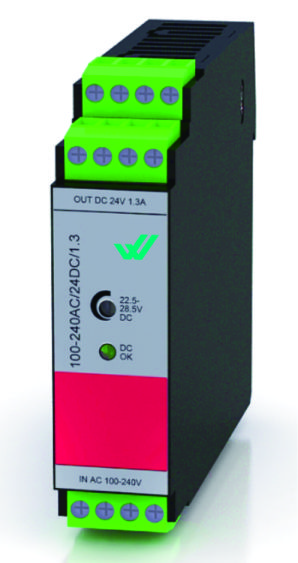

WAT-0009-01
description:1AC 24DC 1.3A

efficiency:>85%
temperature:–25 °C to 70 °C
output:20-28 .5Vdc
input:85Vac-264Vac
PRODUCT FEATURES
PRODUCT FEATURES

1-phase Din Rail Power Supply

Efficiency >80%

Wide temperature range  -25°C 到 70°C

TECHNICAL DATA
TECHNICAL DATA
Model WAT-0009-01
Type  1AC/24DC/1.3A
Input voltage

Rated: 100Vac -240Vac

Range: 85Vac-264Vac

(<90Vac Derating 2.5%/v)

Input frequency 45-65Hz
Standby power <4W
Efficiency >85%
Output voltage

20-28.5Vac (adjustable)

Output current 1.3A
Output power 31.2W
Singnaling Power OK, LED
Operation temperature range -25°C  to 70°C (>60° C  derating 2.5% k)
Dimensions ( D x Wx H ) 108.2x 24 x 91.5mm
Approvals EN62368, UL508,CE,CB,Ex
MTBF(40deg C) >500,000 hrs
Weight 0.4kg

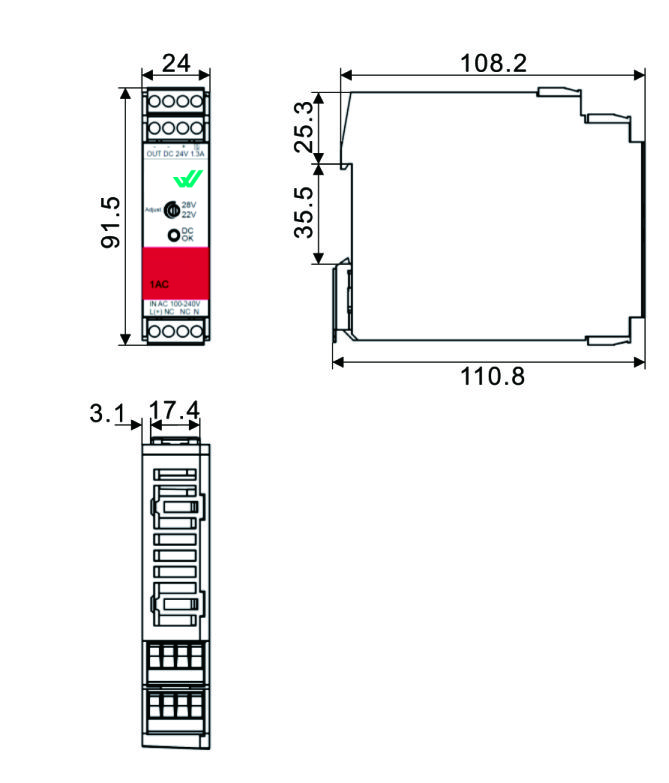

DIMENSIONS
DIMENSIONS
