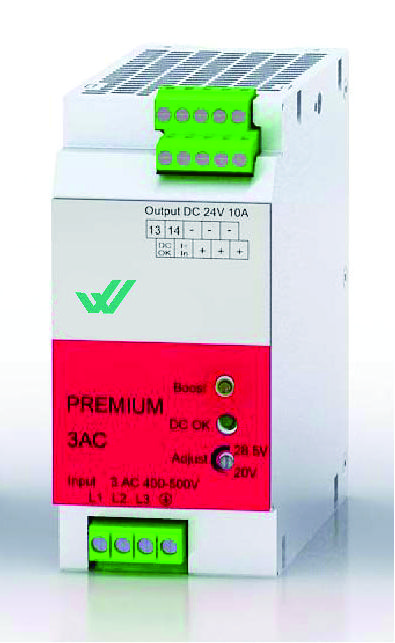

WAT-0302-02
description：3AC 24DC 10A
efficiency：＞90%
temperature：–25 °C to 70 °C
output：20-28.5Vdc
input：3*320Vac-575Vac
PRODUCT FEATURES
PRODUCT FEATURES
3相导轨式开关电源
体积小
效率大于90%
温度范围-25°C到70°C
TECHNICAL DATA
TECHNICAL DATA
| Model | WAT-0302-02 |
| 规格 | 3AC/24DC/10A |
| 输入电压 |
Rated:3*400Vac-500Vac Range:3*320Vac-575Vac (＜360Vac Derating 0.5%/V) |
| 输入频率 | 45-65Hz |
| 待机功率 | <10W |
| 效率 | >90% |
| 输出电压 | 20-28.5 Vdc (adjustable) |
| 输出电流 | 10A |
| 输出功率 | 240W |
| 信号指示 | DC OK signal, LED, Power Boost |
| 环境温度 | -25°C to 70°C (>60° C derating 2.5% k) |
| 尺寸 (深 x 宽 x H高) | 130 x 60x 130mm |
| 认证 | EN62368, UL508, CE,CB,EX，cUL, cURus |
| 无故障工作时间 | >500,000 hrs |
| 重量 | 1.6kg |

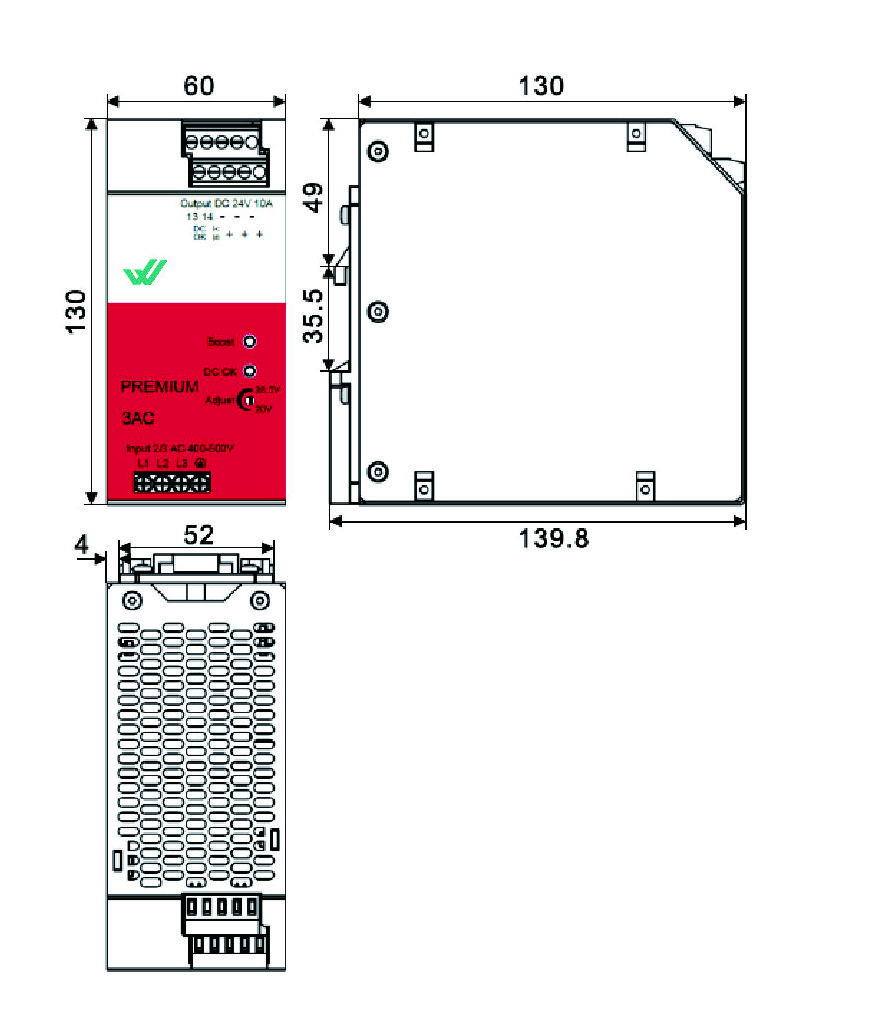

DIMENSIONS
DIMENSIONS
