Product

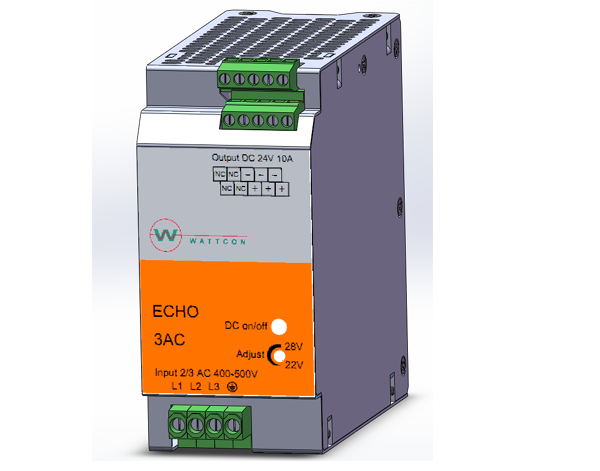

WAT-0303-02
description：3AC 24DC 10A
efficiency：>90%
temperature：–25 °C to 70 °C
output：22-28 Vdc
input：3*320 Vac-575Vac
PRODUCT FEATURES
PRODUCT FEATURES
1-phase din rail power supply
efficiency >90%
Wide temperature range -25°C 到 70°C
TECHNICAL DATA
TECHNICAL DATA
| Model | WAT-0303-02 |
| Type | 3AC/24DC/10A |
| Input voltage |
Rated:3* 400Vac -500Vac Range: 3*320Vac-575Vac |
| Input frequency | 50/60Hz |
| Standby power | <10W |
| Efficiency | >90% |
| Output voltage | 22-28 Vdc (adjustable) |
| Output current | 10A |
| Output power | 240W |
| Singnaling | Power OK LED |
| Operation temperature range | -25°C to 70°C (>60° C derating 2.5% k) |
| Dimensions ( D x Wx H ) | 130x 60x 130mm |
| Approvals | EN62368, UL508,CE,CB,cURus，EN60950 |
| MTBF(40deg C) | >480,000 hrs |
| Weight | 1.5kg |
DIMENSIONS
DIMENSIONS
